QS-220 Actuator Upgrade Set to 3DOF

$5,599.00
$5,599.00 $5,599.00
All-in price — shipping & duties included

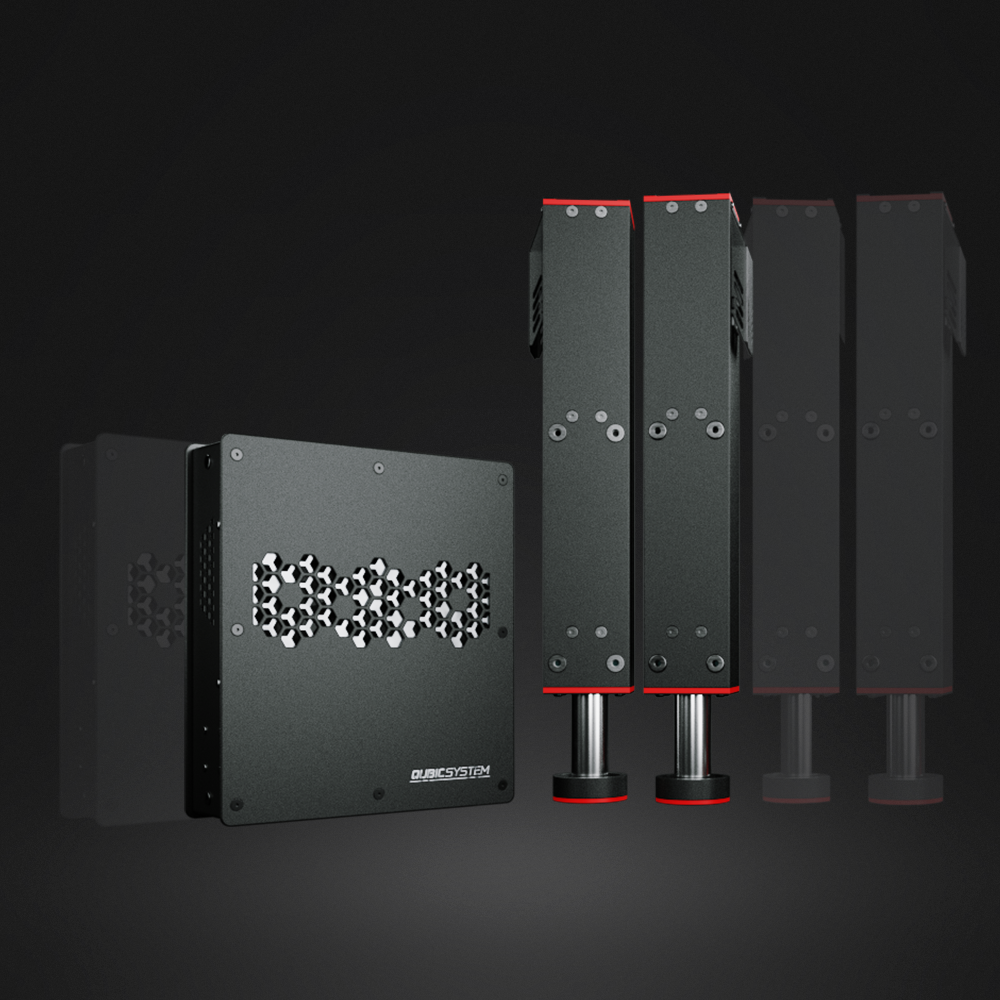

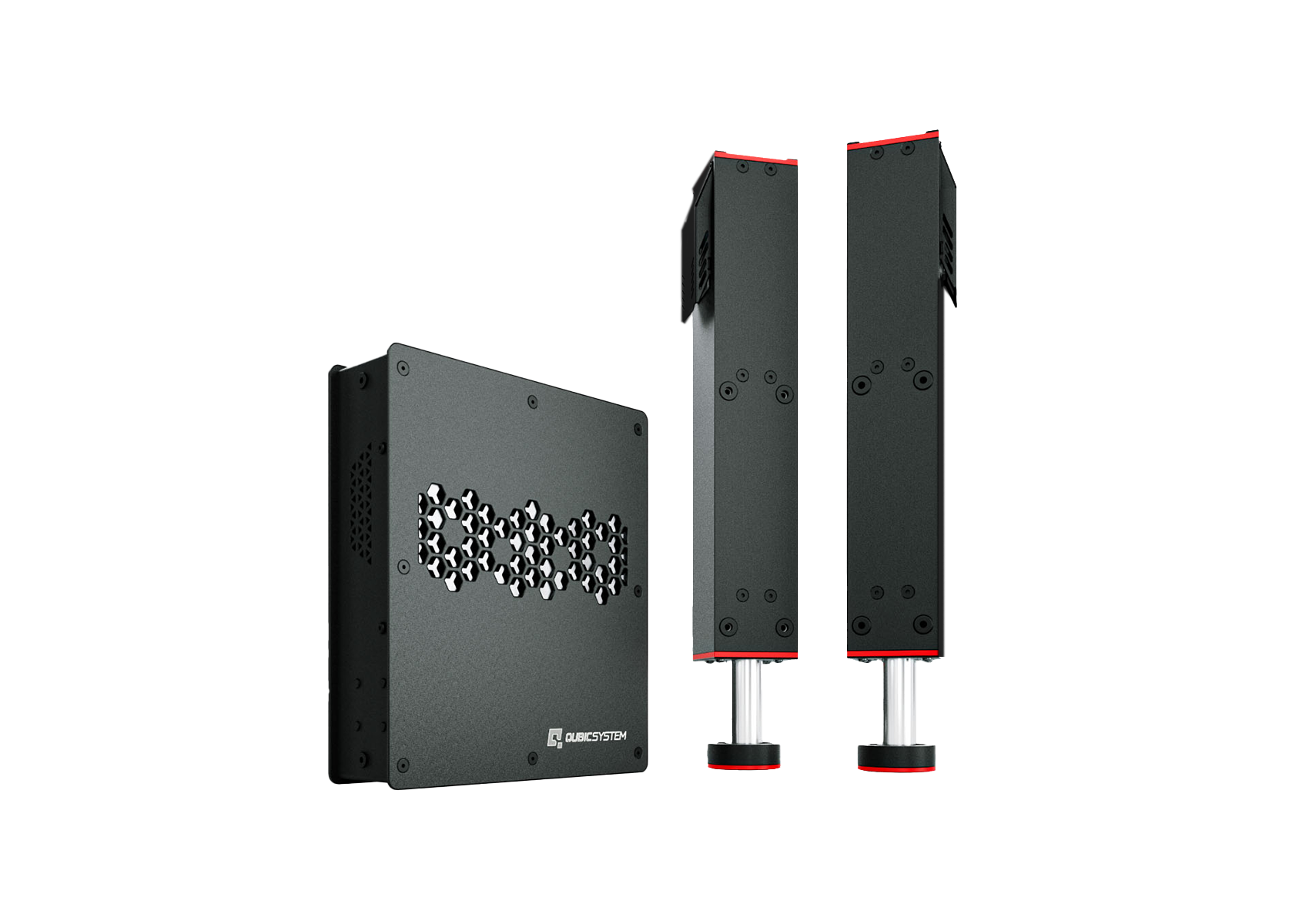

The QS-220 Upgrade Set is the expansion kit for upgrading your existing QS-220 starter configuration to a full 3DOF actuator system. It adds an additional QS-220 motion set (2 actuators + power cabinet), giving you more motion range and more realistic vehicle dynamics when combined with your current system.

What’s included

  • 2 x QS-220 actuator
  • QS-220 power cabinet
  • Power cable (region specific)

All international shipping, import duties and customs clearance are included. No additional import charges upon delivery.

Brand: Qubic System
Availability: Available for immediate dispatch
SKU: QS-220-UPGRADE-EU
Collections:
$5,599.00
$5,599.00 $5,599.00
VAT included

  • Official Distribution & Warranty

    As an authorized partner, we provide the full manufacturer's warranty and direct technical support. No gray market, no risks.

  • Seamless International Shipping

    We manage the entire logistics chain from our European warehouse to your door, utilizing professional freight handling to ensure safe and reliable transit.

  • Expert Support for Simracers

    Need help with your setup? Our team of active simracers is here to assist you with installation and optimization.

The QS-220 Actuator Upgrade Set to 3DOF is designed for customers who already own a QS-220 starter setup and want to expand it into a full 3DOF configuration. By adding another QS-220 motion set, you move from a basic entry layout to a more complete actuator-based motion architecture that delivers stronger cues, higher headroom, and more convincing chassis behavior - especially during weight transfer and cornering transitions.

QS-220 is the larger, higher-stroke actuator system in the Qubic ecosystem, built for demanding sim racing and professional simulation use. With 100 mm stroke actuators, low latency control, and real-time vibration detail, it reproduces road texture and rapid dynamics with exceptional precision. Everything is configured in Qubic Manager, using the same tuning workflow and game-specific profiles as Qubic System motion cockpits.

This upgrade set is intended for users who already have the QS-MC6 motion controller set in their existing build. The new motion set integrates directly into the system without adding extra PC connections in typical multi-module QS-220 configurations - you extend the actuator stack, connect the power cabinet within the system, and configure the new 3DOF profile in software.

Upgrade Set

QS-220 is designed with upgradability in mind – it is possible to expand your Intro set with another 2 actuators and the power cabinet later. For building your extraordinary motion rig you don’t need an extra PC connector, just connect power cabinets directly to each other. Expand your motion form 2DOF to 3DOF configuration. Additional heave axis delivers oversteer and understeer sensation and gives you more realistic and precise driving experiences.

Plug & Perform

We’ve equipped our latest power cabinets and actuators with a new generation of connectors. Built with a chrome-plated brass shell and a shielded structure, they offer solid robust protection against electromagnetic interference.

This protects your health and EMC-sensitive equipment because such protection is impossible with plastic connectors massively used in the simracing/simulation market (they are not properly shielded).

What’s more, they’re fully detachable, which makes installation very easy without the need for technical skills and far less time-consuming.

Enhance Stability

The QS-220 3DoF motion set equipped with dedicated brackets allowing precise customization for an immersive racing adventure. These adaptable brackets seamlessly integrate actuators into popular aluminum based cockpits, delivering unwavering stability and an exhilarating virtual racing experience.

Mounting Options

Discover how quickly and conveniently you can mount the QS-220 set to your cockpit. Whether you prefer the first mounting option for a simple setup or the second option for greater versatility, the QS-220 brackets provide hassle-free motion platform installation to suit your needs.

In-House Software

Qubic Manager is a in-house professional and specialized software for motion platforms. It is plug-and-play compatible with all major racing and flight titles on PC and is continually updated to support new titles as they are released.

The Qubic Manager is a powerful engine, yet it’s simple to use, allowing you to easily adjust levels of motion, bumps, roll, and pitch with a click of a button.

User manual Download Software Product Card
  • 1x Pair of QS-220 actuators with stabilization plates (2 pcs) (actuator brackets included)
  • 1x QS-220 power cabinet (control module)
  • 1 x Power cord (type to be chosen upon the order: EU or UK or US or AU)
Shipping to the United States
Professional Air Freight Delivery

We provide door-to-door air freight shipping to all U.S. states. Due to the high-value and specialized nature of Qubic System equipment, we provide individual shipping quotes for every order. This allows us to find the most competitive, secure, and fastest transit option available at the moment for your specific location.

Processing & Transit Times
  • Order Processing: 1–2 business days.
  • Transit Time: 5–6 business days via express air freight.
  • Total Delivery Window: Most customers receive their equipment within 7–9 business days after payment.
How Shipping Works (Request a Quote Model)
  1. Request a Quote: Click the "Request shipping quote" button on the product page.
  2. Personalized Offer: We calculate the best real-time shipping rates and email you a quote (usually within 24 hours).
  3. Secure Payment: Once you approve the quote, we send a secure payment link for PayPal (including buyer protection) or USD Bank Wire.
  4. Dispatch: After payment, we pack and ship your order from our European warehouse.
  5. Live Tracking: You will receive a tracking link to monitor your shipment's journey across the Atlantic.
Customs, Duties & Taxes

Please note that prices are listed "Ex-Works" and do not include U.S. customs duties or local taxes. These fees are assessed by U.S. Customs and collected by the carrier (FedEx/UPS/DHL) during the clearance process.

We've got you covered
We handle all the complex export documentation and provide the necessary commercial invoices to ensure a smooth and hassle-free customs process.

Heavy-Duty Protection
To ensure your gear arrives in perfect condition, we use professional-grade packaging:

  • Large Systems (QS-V20, QS-S25, QS-S35): Shipped in reinforced, heavy-duty wooden crates.
  • Individual Components (QS-BT1, QS-210, etc.): Shipped on secured, professional pallets.
  • Full Insurance: Every shipment is 100% insured for its total value.
Important Notes
  • Delivery Address: We ship only to the address provided and confirmed during the quote approval process.
  • No Pickup: We are a direct-shipping distributor; local pickup is not available.
  • Signature Required: Due to the high value of the equipment, an adult signature is required upon delivery.
Questions?

If you have any questions about shipping or your order status, contact us at contact@apexone.shop or use the form below - we’ll help quickly.

Specifications

Brand

Qubic system

Product type

Actuators

Technical specs

  • Architecture

    2DOF to 3DOF upgrade

  • Weight

    30 g

  • Total length

    90 mm

  • Total width

    90 mm

  • Min height

    553 mm

  • Vibrations frequency range

    0-100 Hz

  • Connection

    USB

Performance

  • Actuator stroke

    100 mm

  • Maximum velocity

    Q-Mode (230V): 800 mm/s | Performance Mode (115V/230V): 400 mm/s | Heavy Duty Mode (115/230V): 300 mm/s

  • Maximum acceleration

    Q-Mode (230V): 0.8G* | Performance Mode (115V/230V): 0.7G* | Heavy Duty Mode (115/230V): 0.4G*

  • Latency

    < 8 ms

Powering

  • Power supply requirements

    115 / 230 VAC Single Phase

  • Average power consumption

    3DOF Q-Mode: 260W (230V) | Performance: 280W (230V), 270W (115V) | Heavy Duty: 436W (230V), 462W (115V)

  • Peak current for breaker specification

    3DOF Q-Mode: 5.17A (230V) | Performance: 4.55A (230V), 7.35A (115V) | Heavy Duty: 5.88A (230V), 9.89A (115V)

Frequently Asked Questions

What is QS-220?

QS-220 is a modular linear-actuator motion system built for realistic motion textures and real-time vibrations (up to 100 Hz), with very low latency (<8 ms) and high control frequency (up to 1000 Hz).

What motion configurations (DOF) can QS-220 support?

Depending on the number of QS-220 modules and the cockpit configuration, QS-220 can be built as 2, 3 or even 4, 5, 6 DOF when working as motion cockpits.

What are the key performance specs of QS-220 actuators?

Actuator stroke is 100 mm (3.93"). Maximum velocity is up to 800 mm/s (Q-Mode on 230V) and the system supports real-time vibrations in the 0–100 Hz range, with latency below 8 ms.

What power supply is required?

115/230 VAC single-phase power (region dependent). The system connects to the PC via USB (through the motion controller set).

What software is used? Is it included?

Qubic Manager is used to configure and run the system. The software license is free-of-charge.

Can it be used for VR?

Yes. Qubic Manager supports VR HeadWay (VR motion compensation) to reduce unwanted VR tracking effects caused by platform movement.

What’s the difference between QS-220 and QS-210?

QS-220 is the larger, higher-stroke system (100 mm vs 60 mm on QS-210) designed for bigger motion envelopes and heavier-duty applications. It also supports higher maximum velocity modes (up to 800 mm/s in Q-Mode) and higher recommended payloads in 3DOF configurations compared to QS-210.

What is the QS-220 Upgrade Set designed to do?

It is intended for customers who already have the QS-MC6 motion controller set and want to expand their QS-220 system by adding another QS-220 motion set (module).

Do I need an additional USB connection to the PC?

No. One QS-MC6 controller can control multiple QS-220 motion sets (up to 4 sets), so expansions usually do not require an additional PC connection.
