QS-V20 4DOF Motion Platform

$20,499.00
$20,499.00
Final tax and shipping calculated at checkout based on delivery address.

QS-V20 is a motion cockpit with four degrees of freedom (4DOF): heave, pitch, roll and yaw. Its integrated traction-loss motion helps you feel rear-wheel slip, while the QS-220 actuators reproduce braking, acceleration and cornering cues from game telemetry.

Designed for sim racing and driver training, the platform supports rally, GT and Formula 1 simulations. Qubic Manager provides game profiles and adjustable motion settings. Adjustable mounts allow you to adjust your driving position and mount compatible peripherals.

Reviews of Apex One Shop

Read all reviews on Trustpilot
Brand: Qubic System
Availability: Low stock
SKU: QS-V20
Ean: 5904121191072
Collections:
Qubic SystemQS-210 3DOF Full Actuator Set
QS-210 3DOF Full Actuator Set
QS-210 Actuator Upgrade Set to 3DOF
Qubic SystemQS-210 Actuator Upgrade Set to 3DOF
$20,499.00
$20,499.00

  • Manufacturer warranty

    Buy with peace of mind. Your equipment is covered by the manufacturer’s warranty, and we respect your rights as a buyer.

  • Direct Factory Shipping

    Shipped directly from the manufacturer’s warehouse to ensure the fastest delivery times and the latest hardware revisions.

  • Expert Support for Simracers

    Need help with your setup? Our team of active simracers is here to assist you with installation and optimization.

The QS-V20 is a 4DOF motion platform designed to deliver a highly engaging driving experience with an emphasis on traction loss and rear-end dynamics. By combining heave, pitch, roll, and yaw, it reproduces the key cues that help you feel weight transfer, grip changes, and the onset of oversteer and side slip. It is a strong choice for rally, drift, and GT racing simulations, while still providing excellent motion feedback for other driving and training scenarios.

Built around Qubic System actuator technology and managed through Qubic Manager, QS-V20 provides the same profile-based workflow and deep tuning options used across the wider Qubic ecosystem. The platform is engineered for stable, repeatable motion behavior and clear, predictable cues rather than vague or delayed movement. QS-V20 also supports VR headsets. VR HeadWay compensates for platform motion in the headset tracking system so that it is not mistaken for your own head movements. This helps the image match your movements more accurately, improving comfort in VR.

QS-V20 is also designed with expandability in mind. It includes mounting solutions for a complete cockpit build and supports integration with accessories like the QS-BT1 belt tensioner using dedicated brackets, allowing you to build a highly immersive motion plus harness feedback setup.

The QS-BT1 mounting bracket is included with the QS-V20; the belt tensioner itself is sold separately.

QS-MC6 controller with a USB-C port for connection to your computer. USB-C cable included.

Qubic Manager Software

Qubic Manager is software developed by the hardware manufacturer to configure and operate motion platforms. It works with many racing and flight simulators on PC; the list of supported games grows with software updates.

Profiles and settings let you adjust motion intensity, responses to bumps, roll and pitch to your preferences.

Qubic Manager
User manual Download Software Product Card
  • 2 × QS-220 motion set — 4 actuators and 2 power cabinets in total
  • Dedicated upper and lower frames
  • Motion controller

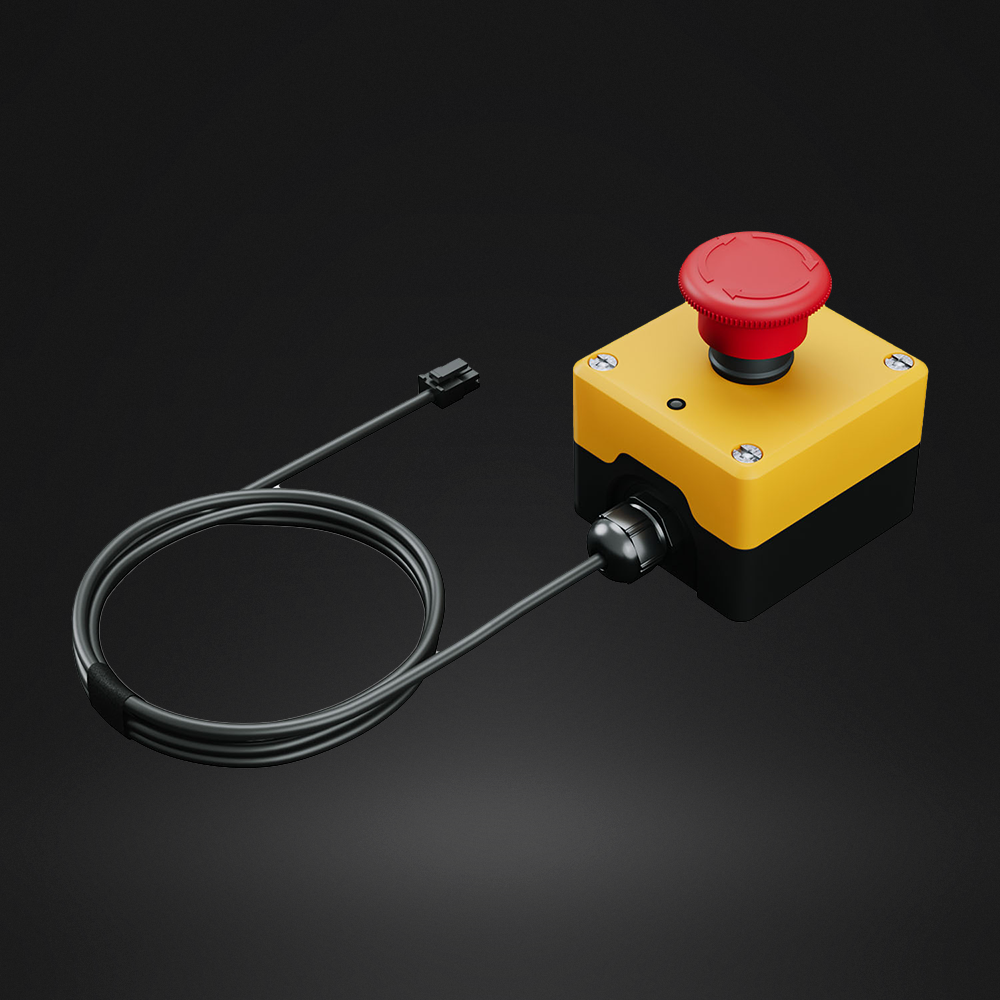

  • Motion lock
  • Set of cables
  • Mounting bracket: wheelbase
  • Mounting Bracket: Pedals
  • Mounting Bracket: Racing Seat
  • Desk with mounting points
  • Mounting Bracket: QS-BT1
  • Step
  • Set Of Wheels For Transport
Shipping Only (no pickup)

We ship from our European warehouses to your delivery address in the U.S. You pay for shipping separately; we cover import duties and customs clearance. We compare delivery options and choose the best balance of speed and price for your order.

Processing Times

In-stock orders are usually packed and handed over to the carrier on the next business day after payment confirmation. Occasionally, dispatch may take up to 2 business days. Transit time from Europe is additional and depends on your location and the shipping method.

For made-to-order and pre-order items, please check the availability information on the product page or contact us for an estimated dispatch date.

Delivery & Tracking

Once your order has been dispatched, we will email you the carrier details and tracking information. Transit time starts when your order is handed over to the carrier. Contact us before ordering for an estimate based on your product and ZIP code.

Import Duties Covered

We handle the customs paperwork and cover import duties and customs clearance. You pay for the product and shipping upfront, with no extra customs charges on delivery.

We choose the most efficient packaging for each order to keep shipping costs down while protecting your equipment throughout its journey.

Important Notes
  • Delivery address: We deliver to the address confirmed with your order. Contact us before dispatch if it needs to change.
  • Transit: Delivery time depends on the shipping method and destination; carrier delays can occur.
  • Damage or missing items: Contact us with your order number and photos of the product and packaging so we can help.
Questions?

If you have any questions about shipping or your order status, contact us at contact@apexone.shop or use the form below - we’ll help quickly.

Specifications

Brand

Qubic system

Product type

Motion platform

Technical specs

  • Architecture

    4 DOF

  • Payload

    150 kg

  • Weight

    280 kg

  • Total length

    1716 mm

  • Total width

    1195 mm

  • Min height

    998 mm

  • Vibrations frequency range

    0–100 Hz

  • Connection

    USB-C (PC to QS-MC6), M-BUS RJ45 (QS-MC6 to control module)

Performance

  • Heave

    −51.8 / +51.5 mm; 800 mm/s; 0.9 G (Q-MODE, 230 V)

  • Roll

    ±7.6°; 110°/s; 1400°/s² (Q-MODE, 230 V)

  • Pitch

    ±5.5°; 40°/s; 500°/s² (Q-MODE, 230 V)

  • Yaw

    ±6.1°; 75°/s; 900°/s² (Q-MODE, 230 V)

  • Actuator stroke

    100 mm

  • Latency

    < 8 ms

Powering

  • Power supply requirements

    120/230 V AC ±10%, 50–60 Hz; single phase, neutral and protective earth (PE). Q-MODE: 230 V only.

  • Average power consumption

    230 V: during typical gameplay 80 W; stress test — Heavy Duty 300 W, Performance 400 W, Q-MODE 600 W. 120 V: during typical gameplay 70 W; stress test — Heavy Duty 300 W, Performance 400 W.

  • Peak current for breaker specification

    230 V: Heavy Duty 6 A; Performance 7 A; Q-MODE 15 A. 120 V: Heavy Duty 9 A; Performance 11 A.

Frequently Asked Questions

Is the QS-V20 suitable for professional training use?

Yes, it’s designed for pro driver training and demanding commercial applications.

What simulation types is the QS-V20 optimized for?

Rally, GT, F1, and other racing formats. Flight simulator enthusiasts will also appreciate the QS-V20’s unique features in training.

What power supply is required?

120/230 V AC ±10%, 50–60 Hz; single phase, neutral and protective earth (PE). Q-MODE: 230 V only.

What is the maximum payload capacity?

The maximum supported payload is 150 kg (330.7 lb) for the basic QS-V20 platform without additional accessories.

How quiet is the QS-V20 during operation?

Around 60 dB during typical gameplay; varies by mode and load.

What games are supported?

You can find a full list of games that are supported by the QS-V20 here https://qubicsystem.com/supported-games/

Which actuators does the QS-V20 use?

QS-V20 uses four QS-220 linear actuators and two power cabinets.

Is the QS-V20 platform compatible with VR technology?

Yes. With compatible hardware and software, VR HeadWay compensates for platform movement in the VR headset tracking. Follow the compatibility and setup instructions for the selected headset and game.

Is software included, and how is it installed?

Yes. The QS-V20 is operated using Qubic Manager, which comes with a free licence. You can download the software from the manufacturer’s website by entering the serial number shown on the label of the M10 controller included in the QS-MC6 set. Ready-made game profiles are already included in the software and do not require separate installation. After launching the software, select a game profile and adjust the motion settings.

How long does the warranty period last?

Qubic System offers motion platforms of the highest quality, which are characterized by solid workmanship and very low failure rate. The warranty period for the device is 2 years for personal use and 1 year for commercial use.

Can I integrate the QS-V20 with QS-BT1?

Of course, it is possible to integrate QS-V20 with QS-BT1. The bracket for attaching the QS-BT1 is already included with the QS-V20, but you have to purchase the belt tensioner separately.
