QS-H13 Seat Mover

$4,179.00
$4,179.00 $4,179.00
All-in price - shipping & duties included

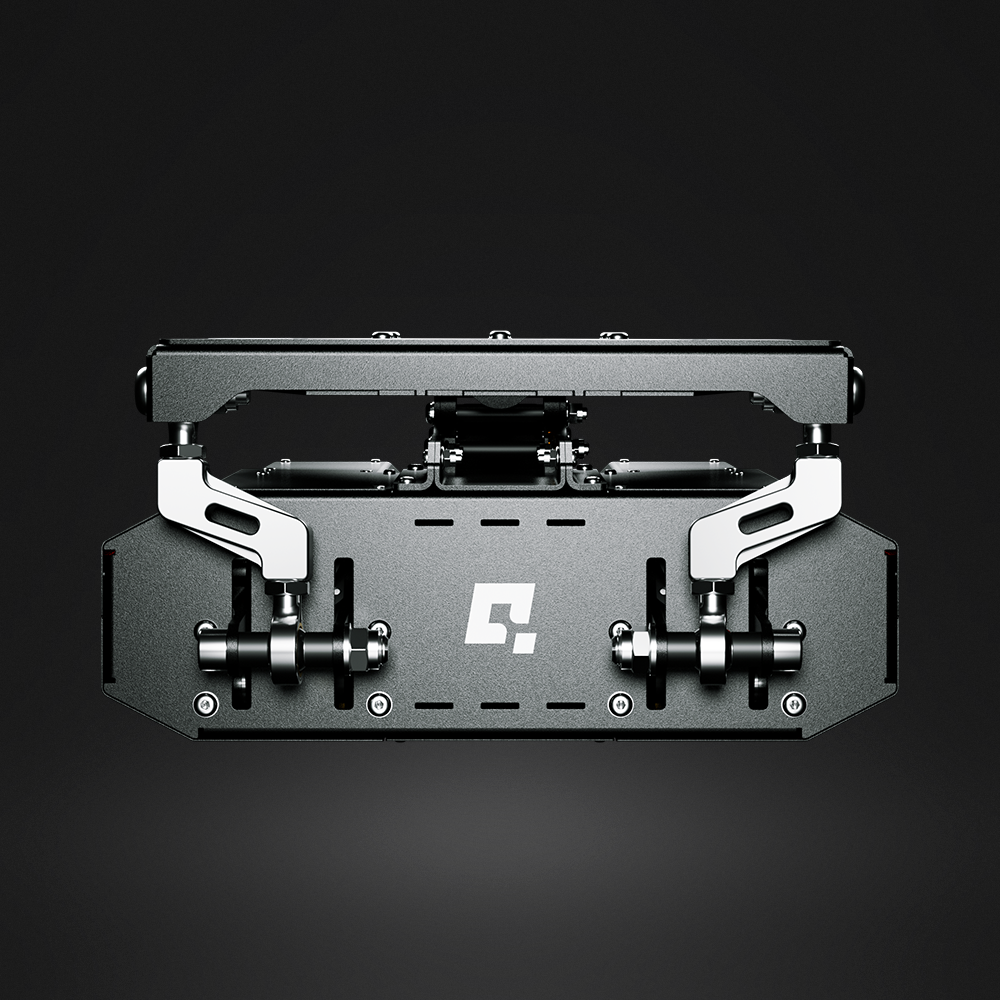

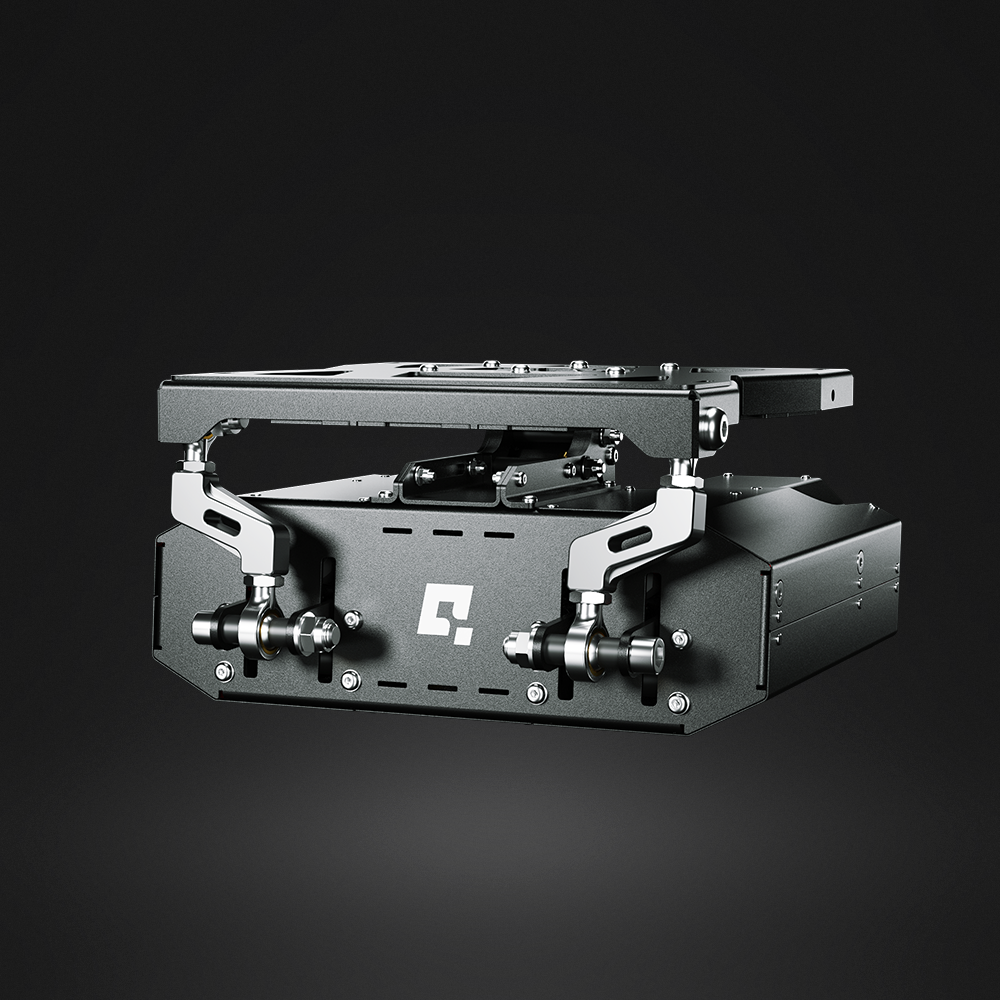

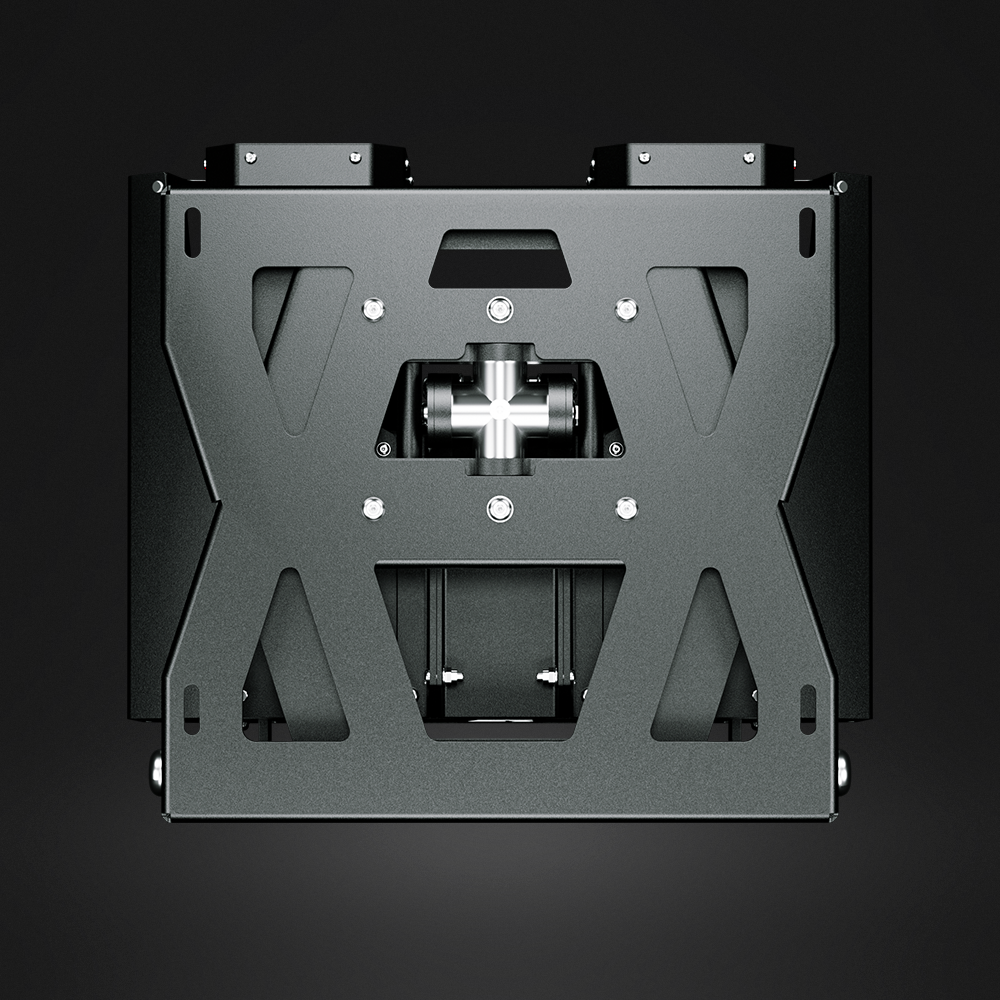

QS-H13 is a compact seat motion platform designed to add realistic pitch and roll movement directly under your seat. It delivers fast response, detailed surface feedback, and a quiet, neighbour-friendly operation, making it an ideal upgrade for serious sim racers who want motion without the footprint of a full cockpit platform. Runs on PC through Qubic Manager and integrates smoothly with the wider Qubic ecosystem.

ll international shipping, import duties and customs clearance are included. No additional import charges upon delivery.

Brand: Qubic System
Availability: 4 in stock
SKU: QS-H13-PACK-EU
Collections:
Qubic SystemQS-210 3DOF Full Actuators Set

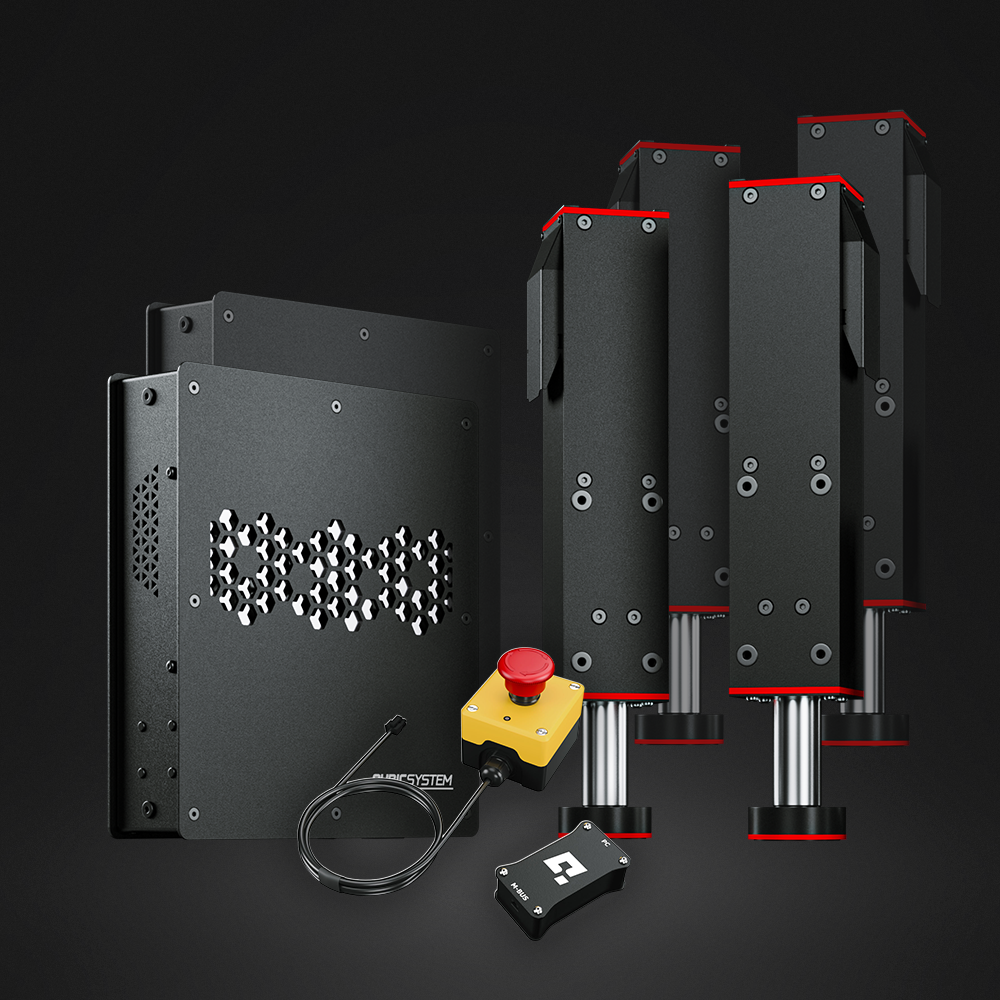

QS-210 3DOF Full Actuators Set
QS-220 2.5DOF Actuators Pivot Set
Qubic SystemQS-220 2.5DOF Actuators Pivot Set
$4,179.00
$4,179.00 $4,179.00
VAT included

  • Official Distribution & Warranty

    As an authorized partner, we provide the full manufacturer's warranty and direct technical support. No gray market, no risks.

  • Seamless International Shipping

    We manage the entire logistics chain from our European warehouse to your door, utilizing professional freight handling to ensure safe and reliable transit.

  • Expert Support for Simracers

    Need help with your setup? Our team of active simracers is here to assist you with installation and optimization.

The QS-H13 is a dedicated seat mover built to bring motion cues exactly where they matter most - under the driver. By moving the seat in pitch and roll, it reproduces braking and acceleration weight transfer, cornering balance, and subtle chassis dynamics with a direct, engaging feel. It is a strong choice for sim racers who want more immersion and better car control cues while keeping the setup compact and practical.

The Qubic System 2DOF Seat Mover QS-H13 sets a new benchmark in the world of motion systems for those seeking a compact and ultra-quiet solution for their driving or flight simulator. It's built using the same advanced technology as the QS-220 actuators, outperforms and challenges all currently available seat mover solutions. By delivering smooth and precise motion across two axes (pitch/roll), it accurately simulates the forces experienced during braking, cornering in a car, or executing sharp maneuvers in an aircraft.

QS-H13 is engineered to be quiet and neighbour-friendly. Because it has no vertical up-down movement, it does not transmit the same kind of vibrations into the floor as many larger motion systems, making it a better fit for home environments and shared spaces. Setup is designed to be plug-and-play with a stable aluminum-profile cockpit, and the system is operated through Qubic Manager with game-specific profiles and tuning options.

For deeper immersion, QS-H13 is compatible with VR and supports VR HeadWay in Qubic Manager. It can also be combined with the QS-BT1 belt tensioner, using dedicated mounting brackets included in the package, creating a highly convincing and controlled motion plus harness feedback experience.

User manual Download Software Product Card
  • 1x Main unit (QS-H13)
  • 1x USB cable
  • 1x External power supply
  • 1x Mounting adapters for aluminium cockpits
  • 1x Mounting adapter for QS-BT1 belt tensioner
  • 1x Motion-Lock jumper + interlink cable
  • 1 x Power cord (type to be chosen upon the order: EU or UK or US or AU)
Shipping to the United States

Free All-Inclusive Delivery

For this product, we offer free door-to-door delivery to the United States. The price shown on this product page already includes international shipping, export handling, customs documentation and standard U.S. import duties.

There are no separate shipping charges and no additional customs duty payment required from the customer at delivery for this product.

What is included in the price

  • Free delivery to the United States
  • International air freight / courier shipping
  • Export documentation from the European Union
  • Standard U.S. import duties
  • Customs clearance support
  • Full shipment insurance
  • Tracking number after dispatch
Processing Times

Processing time depends on product availability:

  • In-stock items: typically ship within 1–3 business days.
  • Made-to-order / pre-order items: within 1–2 business days after you place your order, we will contact you (or update your order) with the estimated shipping timeframe.
Delivery & Tracking

Once your order ships, you’ll receive a confirmation email with:

  • Your tracking number / tracking link
  • Carrier and shipment details (when available)

Please note: delivery time starts after the package is handed over to the carrier and can vary depending on your location and carrier performance.

Customs, Duties & Import Fees
  • For this product, Apex One covers the standard U.S. import duties and customs-related charges required for delivery.
  • This means the displayed product price is designed to be an all-inclusive landed price for U.S. customers. You do not need to request a separate shipping quote and you should not receive an additional customs duty bill from the courier for this product under normal delivery conditions.
  • We ship from our European warehouse using trusted international courier and air freight services. Every shipment is professionally packed and fully insured for its value.
  • After dispatch, you will receive a tracking link so you can monitor the shipment until delivery.
Important Notes
  • Address changes: If you need to update your shipping address, contact us ASAP. Changes are possible only before the order ships.
  • Split shipments: If your order contains items with different availability, we may ship them separately (when it improves delivery speed).
  • Delays: Carrier delays can happen during peak periods, severe weather, or customs inspections (for international shipments).
  • Undeliverable packages: If a package is returned due to an incorrect address or failed delivery attempts, additional shipping costs may apply.
Questions?

If you have any questions about shipping or your order status, contact us at contact@apexone.shop or use the form below - we’ll help quickly.

Specifications

Brand

Qubic system

Product type

Motion system

Technical specs

  • Architecture

    2 DOF

  • Payload

    130 kg

  • Weight

    33 kg

  • Total length

    1329 mm

  • Total width

    1072 mm

  • Min height

    213 mm

  • Vibrations frequency range

    0–100 Hz

  • Connection

    USB

  • Motion platforms compatibility

    Qubic System QS

Performance

Powering

  • Power supply requirements

    100–240 VAC, 50–60 Hz

  • Average power consumption

    Max power: 480 W

  • Peak current for breaker specification

    Max current: 10.43 A

Frequently Asked Questions

Does the QS-H13 require a cockpit?

Yes. The QS-H13 must be mounted to a stable aluminum profile cockpit for safety and optimal performance. The package includes universal mounting adapters.

How silent is the QS-H13?

QS-H13 operates quietly, with a noise level below 58 dB(A) under normal conditions – the quietest seat movers in its class.

Does the QS-H13 transmit vibrations to the floor?

No. The QS-H13 has no vertical “up-down” movement, so it does not transfer vibrations to the floor. It is designed to be neighbour friendly, even in shared spaces.

Is the QS-H13 compatible with VR and VR HeadWay?

Yes. The QS-H13 is fully compatible with the VR and VR HeadWay feature in Qubic Manager software, which compensates the in-game image according to platform motion for a smoother VR experience.

Can the QS-H13 work with the Qubic System QS-BT1 belt tensioner?

Yes. The QS-H13 is fully compatible with the QS-BT1, enabling deeper immersion by synchronizing seat movement with belt tension feedback.

Are QS-BT1 mounting brackets included?

Yes. The QS-BT1 mounting brackets are included in the QS-H13 package.

How easy is it to install and set up?

The QS-H13 is designed for plug-and-play installation. With included brackets, clear mounting points, and step-by-step software guidance, most users can complete setup within less than an hour.

Is it compatible with consoles?

No. The QS-H13 works exclusively with PC through the Qubic Manager software. Console platforms such as PlayStation or Xbox are not supported.

Why isn’t the QS-H13 equipped with e-brakes and why is that good?

Serviceability & noise: e-brakes are non-repairable and have moving internals that often cause disc rattling under vibration and haptic effects. Avoiding this noise source is intentional. Heat, power, weight: e-brake electromagnets produce more heat than the motors, add extra mass, and draw additional power during operation. QS-H13 runs at 46 V for dynamics; most e-brakes are 24 V, so they would need a second PSU. Motors typically use less power to hold position than e-brakes need to release and hold their internal discs. Limited real-world use: e-brakes help only when the unit is completely powered off, which is not a typical use case for a seat mover. Power-off behavior: QS-H13 uses a hardware passive circuit that gains power from spinning motors and at the same time limits their speed. The faster you try to move it, the more resistance it generates. When power is cut, the seat does not move abruptly; under load it slowly shifts forward or backward and settles safely.

Is software included, and how is it installed?

Yes, Qubic Manager software is required and can be easy downloaded. The QS-H13 serial number is needed for activation and profile setup. Qubic Manager license is free of charge.

What power requirements does it have?

QS-H13 requires a 120/230 ± 10% VAC 50-60 Hz single phase with ground and neutral connection.

What type of seat is recommended?

It is strongly recommended to use a FIA-certified racing seat and harness for safety and optimal performance.

What games are supported?

You can find a full list of games that are supported by the QS-H13 – HERE.
